EFHW-8010-1K-Plus™ Multi-Band End Fed Half Wave Antenna
This is an End-Fed Half-Wave (EFHW*) antenna for 80/40/30/20/17/15/12 and 10m bands. Unlike many END FED antennas on the market, this one does not require the Antenna Tuner to operate. It is a resonant Half wave on 80m (3.5MHz) therefore also resonant on second, third, and fourth harmonics, etc. The antenna transformer is optimized for the lowest insertion loss 3.5-30MHz featuring three stacked cores and a transformation ratio of ~56:1 (~2800:50 Ohms).
The average loss of less than 0.4dB is unmatched by any other similar transformer on the market proving our worldwide leadership in the design of high ratio-wide bandwidth RF transformers for 3-30MHz. See the Insertion loss chart here. This is the smaller version of our EFHW-8010-2K-Plus model, see the comparison image.
*This is perfect antenna for ALE HF-link stations, NVIS, MARS, ARES, EMCOMM etc.

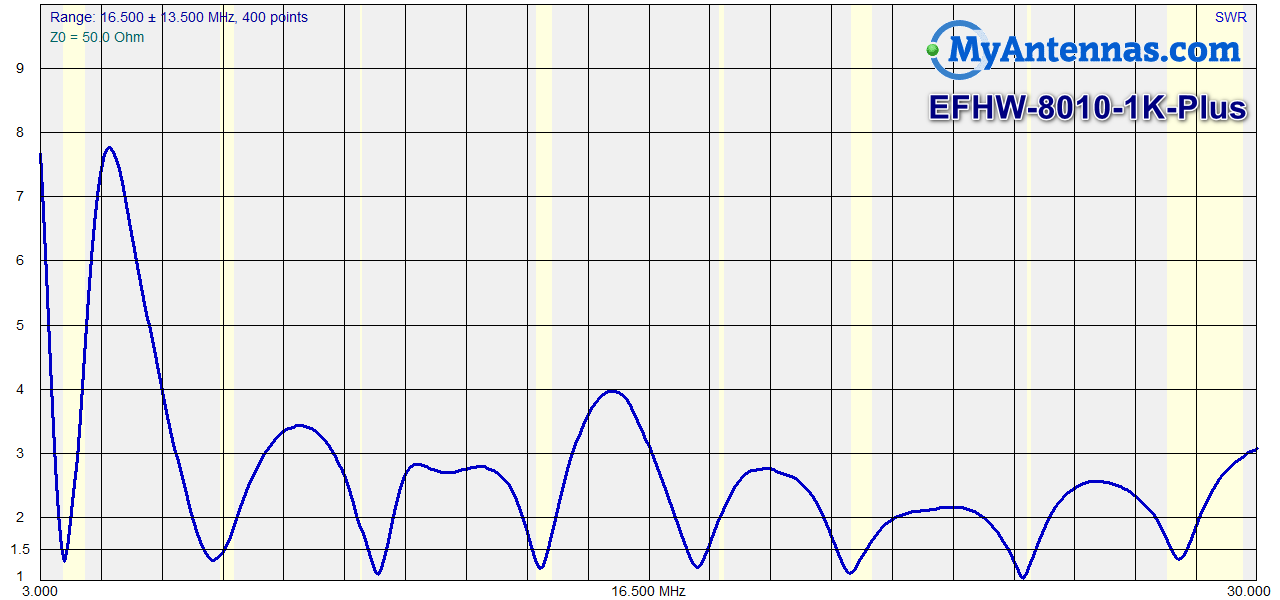

Various installations such as horizontal, vertical, inverted V, inverted L, etc. are possible. Measured VSWR in the gallery are taken with the antenna in an inverted V shape with the center of wire at 20 feet and ends a few feet above the ground, your values could vary with the way and height of installation. For Pole or tower installations additional installation hardware is available on our “Accessories” page.
- NO TUNER needed!
- NO counterpoise needed!
- Grounding of cable at the entrance to the home is recommended
- Frequency coverage: 3.5-30MHz
- Resonant on 80/40/30/20/17/15/12/10m
- Wire length ~130 feet
- Power Handling: 1kW I.C.A.S
- 250W continuous in digital modes such as FT8 etc.
- Stainless Steel hardware
- Stealth #16 AWG XLPE black wire
- Connector: Silver/Teflon SO-239
*Grounding at the transformer box or end of the coaxial cable is recommended for the protection of your equipment from an electrostatic buildup in order to prevent ESD- electrostatic discharge.
NOTE: grounding does not affect antenna tuning. If the transformer box is installed high above the ground, there is no need to route the ground wire from the box, instead just ground the coaxial cable at the entrance to your home or at the station.
