EFHW-4010 Multi-Band End Fed Half Wave Antenna
This is an End-Fed Half-Wave (EFHW*) antenna for 40/20/15 and 10m bands. Unlike many END FED antennas on the market, this one does not require the Antenna Tuner to operate. It is resonant Half wave on 40m (7MHz) therefore also resonant on second, third and fourth harmonics, 20m (14MHz), 15m (21MHz) and 10m (28MHz). The antenna could be used with 100W on WARC bands too, where measured VSWR is less than 4:1. Due High Impedance feed point, the antenna is less height dependent. You can put it up at 10 or 50 feet in the air without much change in VSWR values.
Various installations such as horizontal, vertical, as inverted V, as inverted L, zigzag etc. are possible. Measured VSWRs in the gallery are taken with an antenna in an inverted V shape with the center of wire at 20 feet and ends at few feet above ground, your values could vary with way and height of installation.
- NO TUNER needed!
- NO counterpoise needed! (Grounding recommended)
- Frequency coverage: 7-30MHz
- Resonant on 40/20/15/10m
- Wire length ~63 feet
- VSWR on 40/20/15/10m
- Power Handling: 1kW I.C.A.S
- Stainless Steel hardware
- Stealth Marine #18 AWG black wire
- Connector: Silver/Teflon SO-239

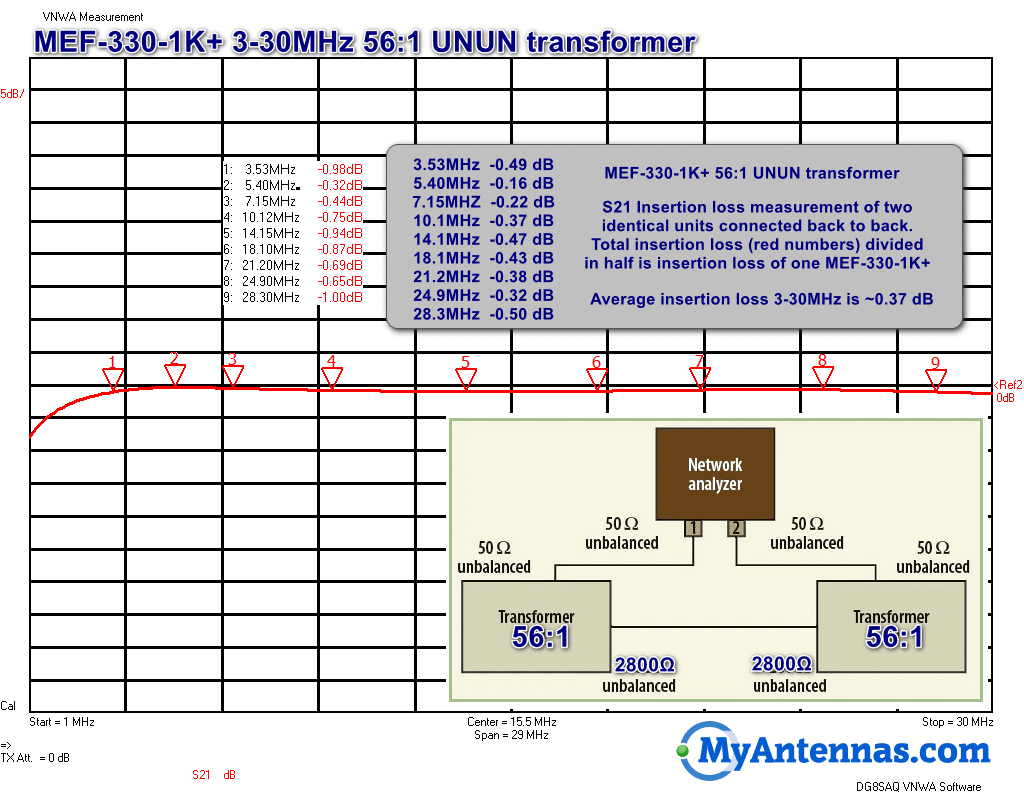

NOTE: grounding does not affect antenna tuning. If the transformer box is installed high above the ground , there is no need to route the ground wire from the box, instead just ground the coaxial cable at the entrance to your home or at the station.
* EFHW (monoband) antenna was introduced to HAMs almost century ago by Josef Fuchs, OE1JF, patented in 1927.
